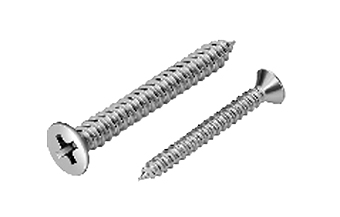

CSK philips self tapping screw

Screws

Diameter Range	2.9# To 6.3#
Length	8MM TO 100MM
Threads Type	(AB) Type And (B) Type
Material	Stainless Steel and also as per customer requirements standards : DIN, ISO

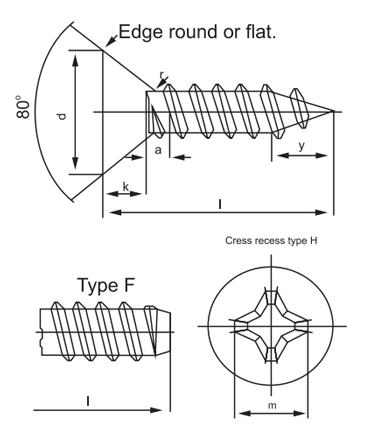

Thred Size d	ST 2.2	ST 2.9	ST 3.5	ST 4.2	ST 4.8	ST 5.5	ST 6.3
No	#4	#5	#6	#8	#10	#12	#14
Pitch	0.8	1.1	1.3	1.4	1.6	1.8	1.8
Max	4.3	5.5	6.8	8.1	9.5	10.8	12.4
Min	4	5.2	6.44	7.74	9.14	10.37	11.97
K	1.3	1.7	2.1	2.5	3	3.4	3.8
Cross Recess No.	1		2				3
M~	2.5	3	4.2	4.7	5.1	6.8	7.1
Penetration type H depth
Min	1.02	1.4	1.62	2.11	2.59	2.95	3.33
Max	1.32	1.7	2.12	2.62	3.1	3.53	3.91
